Micro-D Circuit Series | Right Angle .750 x .750 (Styles 9, 19)

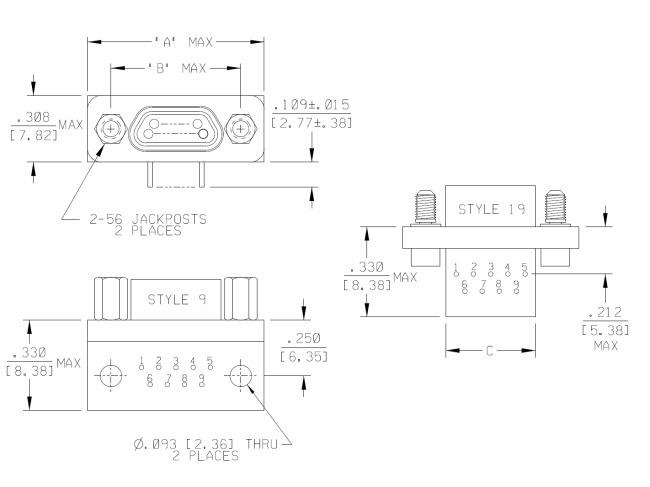

Micro-D Shell Dimensions (inches) [millimeters]

Size A Max. B Nom.  C Max. E Max F Max.
9 .785 (19.94) .565 (14.35) .400 (10.16) .308 (7.82) .410 (10.41)
15 .935 (23.75) .715 (18.16) .550 (13.97) .308 (7.82) .410 (10.41)
21 1.085 (27.56) .865 (21.97) .700 (17.78) .308 (7.82) .410 (10.41)
25 1.185 (30.10) .965 (24.51) .800 (20.32) .308 (7.82) .410 (10.41)
31 1.335 (33.91) 1.115 (28.32) .950 (24.13) .308 (7.82) .410 (10.41)
37 1.485 (37.72) 1.265 (32.13) 1.100 (27.94) .308 (7.82) .410 (10.41)



Size G Max. H Max.
9 .250 (6.35) .138 (3.51)
15 .250 (6.35) .138 (3.51)
21 .250 (6.35) .138 (3.51)
25 .250 (6.35) .138 (3.51)
31 .250 (6.35) .138 (3.51)
37 .250 (6.35) .138 (3.51)


Sales Drawings

download pdf Male Circuit Style 9 Size(9-37) PDF file

download pdf Female Circuit Style 9 Size(9-37) PDF file



  3D Models*
  Style 9 Style 19
Size Male Female Male Female
9 836111317.STP 836211317.STP 836119048.STP 836219041.STP
15 836121317.STP 836221317.STP 836129048.STP 836229024.STP
21 836131317.STP 836231317.STP 836139011.STP 836239025.STP
25 836141317.STP 836241317.STP 836149039.STP 836249034.STP
31 836151317.STP 836251317.STP 836159018.STP 836259036.STP
37 836161317.STP 836261317.STP 836169024.STP 836269029.STP

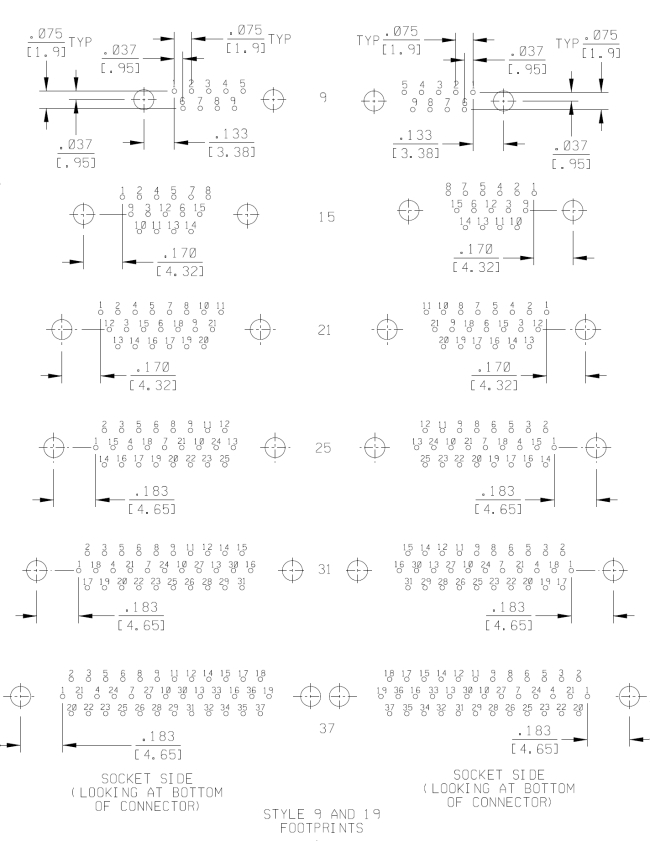

  PCB Layouts
Size Male Female
9 836111317PCB.DXF 836211317PCB.DXF
15 836121317PCB.DXF 83622117PCB.DXF
21 836131317PCB.DXF 836231317PCB.DXF
25 836141317PCB.DXF 836241317PCB.DXF
31 836151317PCB.DXF 836251317PCB.DXF
37 836161317PCB.DXF 836261317PCB.DXF


*3D Models for Style 9 is standard profile with jackposts. 3D models for Style 19 is standard profile with jackscrews. Consult factory for other configurations



Contact Resistance 8 mO Maximum @ 2.5 A
Current Rating 3.0 A Maximum
Dielectric Withstanding Voltage 900 VAC at sea level, 300 VAC @ 70,000 ft. Solder cups and shielded cable same as MIL-DTL-83513; 600 VAC at sea level 150VAC @ 70,000 ft.
Insulation Resistance 5,000 MO Minimum

Contact Engaging and Separating Forces

6 oz. max per MIL-DTL-83513 (contact average is 3 oz.); Separation force is 5.0 oz. minimum.

Contact Mating and Unmating Forces per MIL-DTL-83513

Mate = 10 oz. X number of contacts maximum. Unmate = 10.5 oz. X number of contacts minimum.

Shock and Vibration

Vibration No damage or interruption detected (one microsecond sensitivity) when subjected to Method 2005, Test Condition IV of MIL-STD-1344.
Shock No damage or interruption detected (one microsecond sensitivity) when subjected to Test Condition E. Method 2004 of MIL-STD-1344.
Durability No mechanical defects after 500 matings; Test criteria are mating force, contact resistance, contact engagement, and separation forces.
Salt Spray No exposure of base metal due to corrosion; no loss of performance as in durability above.
Description Mil Spec UMI A Max. B Max.
Jackscrew Lo Allen M83513/05-02 83041xxxx .361 (9.17) .103 (2.62)
Jackscrew Hi Allen M83513/05-03 83041xxxx .868 (22.05) .610 (15.49)
Jackscrew Lo Slot M83513/05-05 83041xxxx .361 (9.17) .103 (2.62)
Jackscrew Hi Slot M83513/05-06 83041xxxx .868 (22.05) .610 (15.49)
Jackpost M83513/05-07 83041xxxx .500 (12.70) .190 (4.83)
Jackscrew Lo Allen M83513/05-12 83041xxxx .390 (9.91) .103 (2.62)
Jackscrew Hi Allen M83513/05-13 83041xxxx .902 (22.91) .610 (15.49)
Jackscrew Lo Slot M83513/05-15 83041xxxx .390 (9.91) .103 (2.62)
Jackscrew Hi Slot M83513/05-16 83041xxxx .902 (22.91) .610 (15.49)
Jackpost M83513/05-17 83041xxxx .500 (12.70) .185 (4.70)



Description Thread Used on Sizes 3D Models
Jackscrew Lo Allen 2-56 UNC-2A   M83513/05-02.STP
Jackscrew Hi Allen 2-56 UNC-2A 9 M83513/05-03.STP
Jackscrew Lo Slot 2-56 UNC-2A through M83513/05-05.STP
Jackscrew Hi Slot 2-56 UNC-2A 51 M83513/05-06.STP
Jackpost 2-56 UNC-2B   M83513/05-07.STP
Jackscrew Lo Allen 4-40 UNC-2A   M83513/05-12.STP
Jackscrew Hi Allen 4-40 UNC-2A   M83513/05-13.STP
Jackscrew Lo Slot 4-40 UNC-2A 100 M83513/05-15.STP
Jackscrew Hi Slot 4-40 UNC-2A   M83513/05-16.STP
Jackpost 4-40 UNC-2B   M83513/05-17.STP



Hardware Diagram

Materials and Finishes

Pin Contacts Beryllium Copper (C17200) per ASTM B194.
Socket Contacts Copper alloy (C21000) per ASTM B36 or leaded commercial bronze (C314000) per ASTM B140.
Contact Plating Gold plated per MIL-DTL-45204D. 50 microinches min. is the standard thickness.
Metal Shells Aluminum alloy per SAE-AMS-QQ-A-200/8, type 6061-T6. Finish is cadmium per SAE-AMS-QQ-P-416, TYPE II, CLASS 3, with suitable underplate with yellow chromate, this plating is not RoHS compliant. Or Finish Electroless Nickel plate per SAE AMS2404, class 3 or 4, .0005 minimum thickness.
Insulator Material Preferred material is Polyphenylene sulfide (PPS) per MIL-M-24519 or ASTM D5927 GST 40F. Color Black.
LCP Liquid Crystal Polymer-Vectra 130 (optional).
Interfacial Seals Fluorosilicone elastomer per MIL-R-25988. Standard on “M” Series socket face.
Hardware Stainless Steel, passivated.



Micro-D Selection Guide

Select the type of rectangular connector you require. Note the “P” series of MIL-DTL-83513 is not designed to mate with the MIL-DTL-83513 “M” series. The “M” series mates with its dimensional plastic version “B”. The “A” series mates with its dimensional plastic version “P”.

connector mating diagram

Micro-D Dimensional Data

A, P, M, and B Series 50 mil Rectangular Connectors, P and M series are in accordance with MIL-DTL-83513

style diagram
