Ulti-Mate Connector
Ulti-Mate Connector, Inc. has been producing world-class Micro-miniature connectors and interconnect solutions since 1977. Their expertise in the design and production of customized solutions to the most demanding customer requirements has made Ulti-Mate a valued supplier to the OEM Marketplace.
Ulti-Mate specializes in serving the unique interconnect needs of military, space, aviation, medical, and geophysical exploration marketplaces. Innovation and quality has placed Ulti-Mate connectors in many of our country’s most advanced missile systems, manned space and satellite vehicles, and guidance and navigation systems. Ulti-Mate has a long history of meeting the rigorous specifications of invasive and noninvasive medical imaging, patient monitoring and measured drug delivery markets.

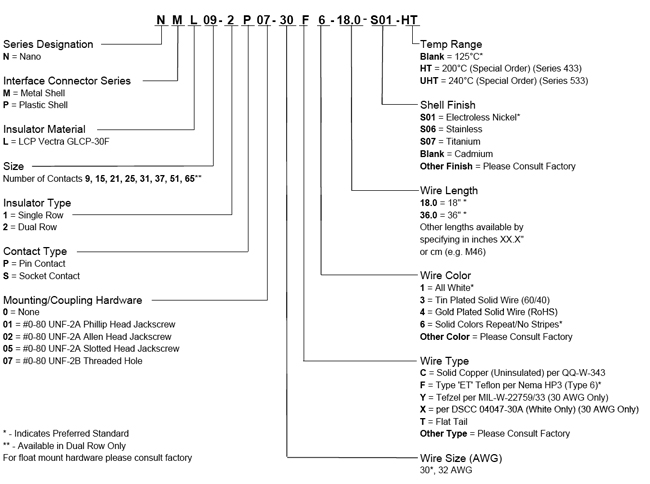

Nano Series | Circular

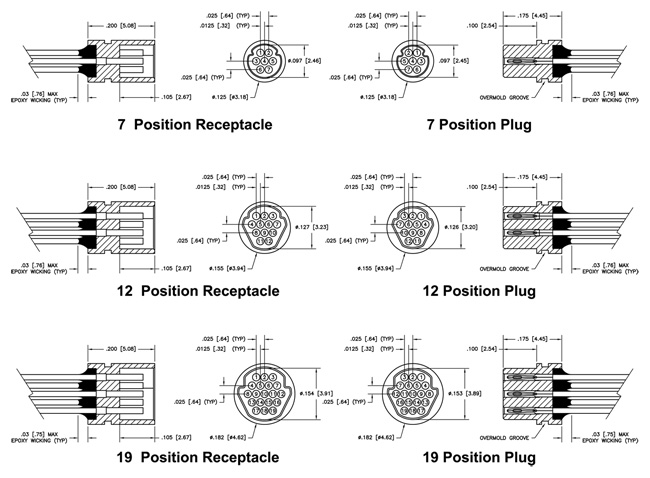

7-12-19 Positions, Wired
| Contact Resistance | 0.071 volt maximum drop @ 1.0 amps (.071 ohms) |
|---|---|
| Current Rating | 1.0 Amp Maximum per contact |
| Dielectric Withstanding Voltage | 250 V, RMS, 60 Hz |
| Insulation Resistance | 5,000 Megaohms Minimum @ 100 VDC |
Contact Engaging and Separating Forces
5 Ounce Maximum, 0.4 Ounce Minimum
Standard Wire Sizes
#30–#32 AWG
Shock and Vibration
| Vibration | Tested in accordance with EIA–364–28, Condition IV. No Damage or resistance change greater than 10 omhs lasting longer than 10 ns |
|---|---|
| Shock | Tested in accordance with EIA–364–27, Condition G. No Damage or resistence change greater than 10 ns |
| Durability | 200 connector mating cycles tested in accordance with EIA–364–09. No Damage or resistance change greater than 10ohms lasting longer than 10ns |
| Salt Spray | Mated connectors tested in accordance with EIA–364–26, Condition B. No exposure to base metal |
| Humidity | Mated connectors tested in accordance with EIA–364–31, Condition B (except steps 7a and 7b). Meet DWV and IR Requirements |
Consult factory to determine if optional hardware is available.
Materials and Finishes
| Pin & Socket Contacts | Pins: BeCu alloy strip per ASTM–B–194 / Sockets: BeCu per ASTM–B–194 |
|---|---|
| Contacts Plating | Gold plate per ASTM B488, or SAE AMS 2422 |
| Molded Insulators into Metal housing or Full plastic housing: | Insulating compound per MIL–I–16923. Liquid Crystal Polymer (LCP), per MIL–M–24519 GLCP–30F, 30% Glass–Filled |
| Hardware | Corrosion resistant steel per ASTM A 582/A582 or ASTM A 581/A581M, Passivated per SAE AMS–2700 |
