Nano Series | PCB Right Angle SMT
2 Row Metal or Plastic Housing, 9, 15, 21, 25, 31, 37, 51 and 65 Positions. Our precision formed pin and socket contracts, are a single piece, crimp less contract, ready for PC board termination. Precision forming, allows us to produce a rectangular integral PC tail contact, eliminating the need for crimping a solid wire, which eliminates crimp resistance and soldering issues.

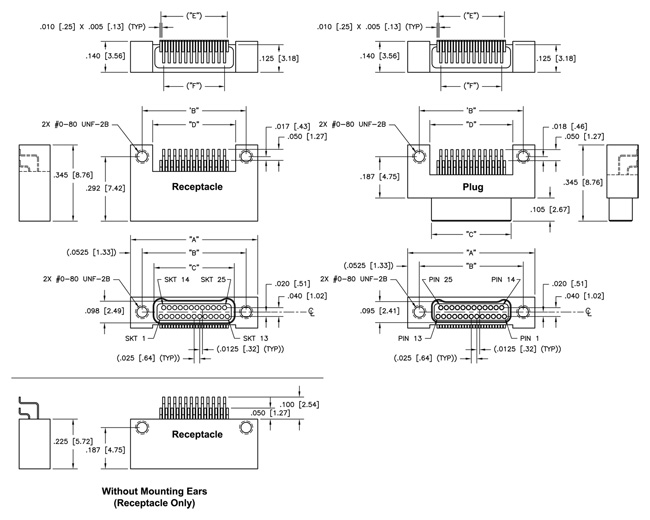

Nano-D Shell Dimensions (inches) [millimeters]
| Size | "A" | "B" | Plug "C" Receptacle | ||||
| 9 | .375 [9.52] | .270 [6.86] | .160 [4.06] | .163 [4.14] | |||
| 15 | .450 [11.43] | .345 [8.76] | .235 [5.97] | .238 [6.04] | |||
| 21 | .525 [13.33] | .420 [10.67] | .310 [7.87] | .313 [7.95] | |||
| 25 | .575 [14.60] | .470 [11.94] | .360 [9.14] | .363 [9.22] | |||
| 31 | .650 [16.51] | .545 [13.84] | .435 [11.05] | .438 [11.12] | |||
| 37 | .725 [18.41] | .620 [15.75] | .510 [12.95] | .513 [13.03] | |||
| 51 | .900 [22.86] | .795 [20.19] | .685 [17.40] | .688 [17.47] | |||
| 65 | 1.075 [27.30] | .970 [24.64] | .860 [21.84] | .863 [21.92] | |||
| Size | "D" | "E" | "F" | ||||
| 9 | .175 [4.44] | .100 [2.54] | .075 [1.90] | ||||
| 15 | .250 [6.35] | .175 [4.44] | .150 [3.81] | ||||
| 21 | .325 [8.25] | .250 [6.35] | .225 [5.71] | ||||
| 25 | .375 [9.52] | .300 [7.62] | .275 [6.98] | ||||
| 31 | .450 [11.43] | .375 [9.52] | .350 [8.89] | ||||
| 37 | .525 [13.33] | .450 [11.43] | .425 [10.79] | ||||
| 51 | .700 [17.78] | .625 [15.87] | .600 [15.24] | ||||
| 65 | .875 [22.22] | .800 [20.32] | .775 [19.68] | ||||
Sales Drawings
Male PCB Right Angle SMT Plug PDF file
Female PCB Right Angle SMT Receptacle PDF file
Female PCB Right Angle SMT Receptacle w/Mounting Ears PDF file
CLICK on part number to download .stp file or .dxf file
*3D Models are standard Metal Shell profile. Please consult factory for extended profile (female only)
and other configurations
| 3D Models** | PCB Layouts | ||||||
| Size | Female | ||||||
| 9 | 832411117.STP | 832411117PCB.DXF | |||||
| 15 | 832421117.STP | 832421117PCB.DXF | |||||
| 21 | 832431117.STP | 832431117PCB.DXF | |||||
| 25 | 832441117.STP | 832441117PCB.DXF | |||||
| 31 | 832451117.STP | 832451117PCB.DXF | |||||
| 37 | 832461117.STP | 832461117PCB.DXF | |||||
| 51 | 832471117.STP | 832471117PCB.DXF | |||||
| 65 | 832481117.STP | 832481117PCB.DXF | |||||
**3D Models are extended profile (female only) metal shell versions. Please consult factory for other configurations
| Contact Resistance | 0.071 volt maximum drop @ 1.0 amps (.071 ohms) |
|---|---|
| Current Rating | 1.0 Amp Maximum per contact |
| Dielectric Withstanding Voltage | 250 V, RMS, 60 Hz |
| Insulation Resistance | 5,000 Megohms Minimum @ 100 VDC |
Contact Engaging and Separating Forces
5 Ounce Maximum, 0.4 Ounce Minimum
Standard Wire Sizes
#30–#32 AWG
Shock and Vibration
| Vibration | Tested in accordance with EIA–364–28, Condition IV. No Damage or resistance change greater than 10 omhs lasting longer than 10 ns |
|---|---|
| Shock | Tested in accordance with EIA–364–27, Condition G. No Damage or resistence change greater than 10 ns |
| Durability | 200 connector mating cycles tested in accordance with EIA–364–09. No Damage or resistance change greater than 10ohms lasting longer than 10ns |
| Salt Spray | Mated connectors tested in accordance with EIA–364–26, Condition B. No exposure to base metal |
| Humidity | Mated connectors tested in accordance with EIA–364–31, Condition B (except steps 7a and 7b). Meet DWV and IR Requirements |
Materials and Finishes
| Pin & Socket Contacts | Pins: BeCu alloy strip per ASTM–B–194 / Sockets: BeCu per ASTM–B–194 |
|---|---|
| Contacts Plating | Gold plate per ASTM B488, or SAE AMS 2422 |
| Metal Shells | Aluminum with electroless nickel or electrodeposited cadmium plating, Stainless Steel per ASTM A582, Titanium Alloy per MIL–T–81556, Unplated |
| Molded Insulators into Metal housing or Full plastic housing: | Insulating compound per MIL–I–16923. Liquid Crystal Polymer (LCP), per MIL–M–24519 GLCP–30F, 30% Glass |
| Hardware | Corrosion resistant steel per ASTM A 582/A582 or ASTM A 581/A581M, Passivated per SAE AMS–2700 |
